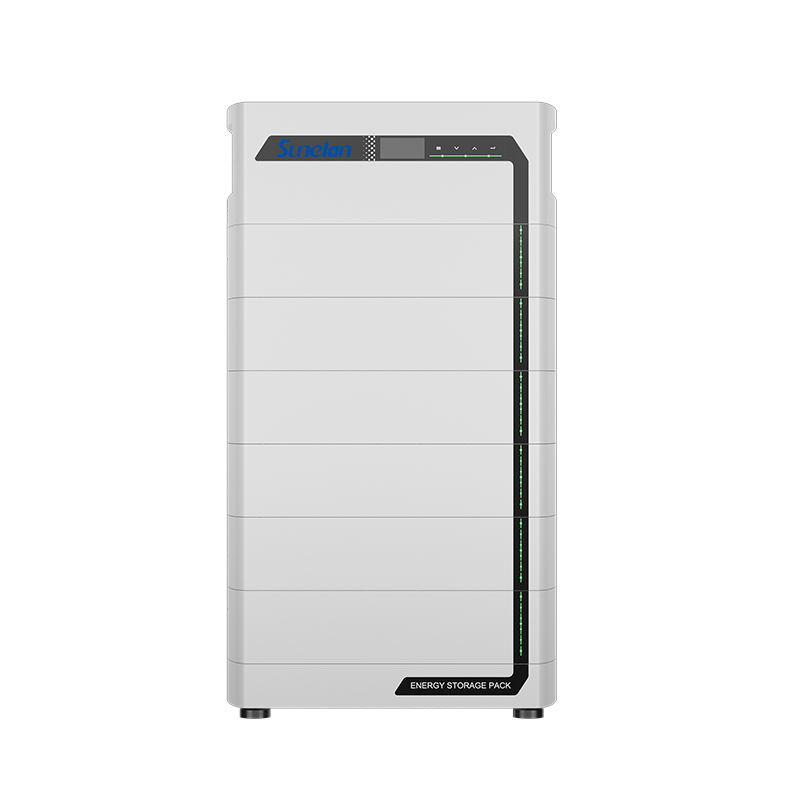

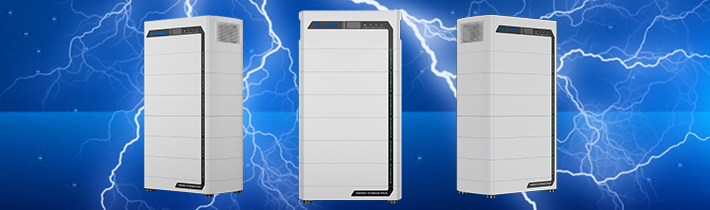

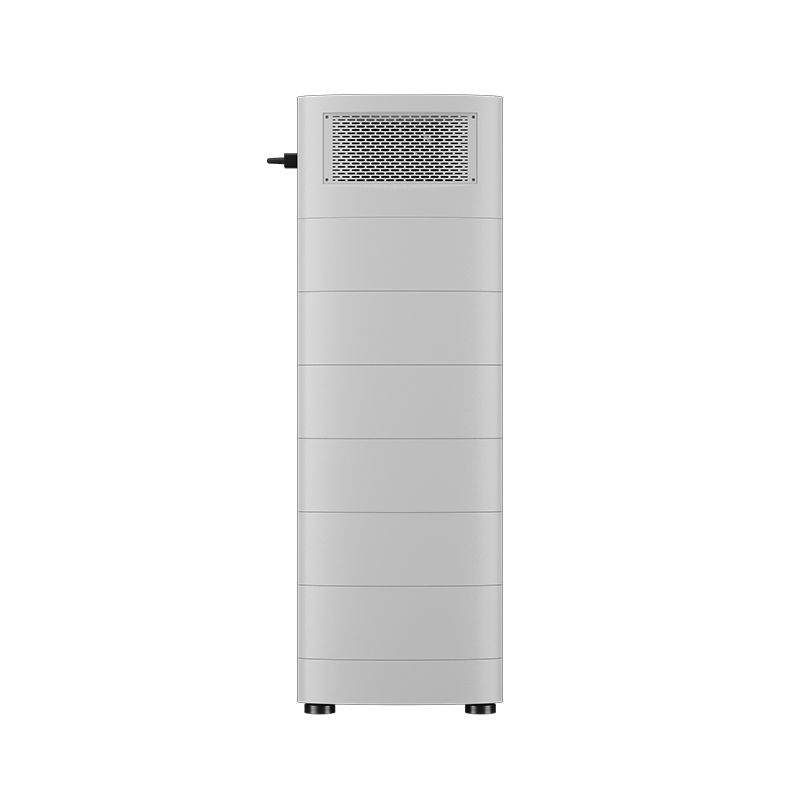

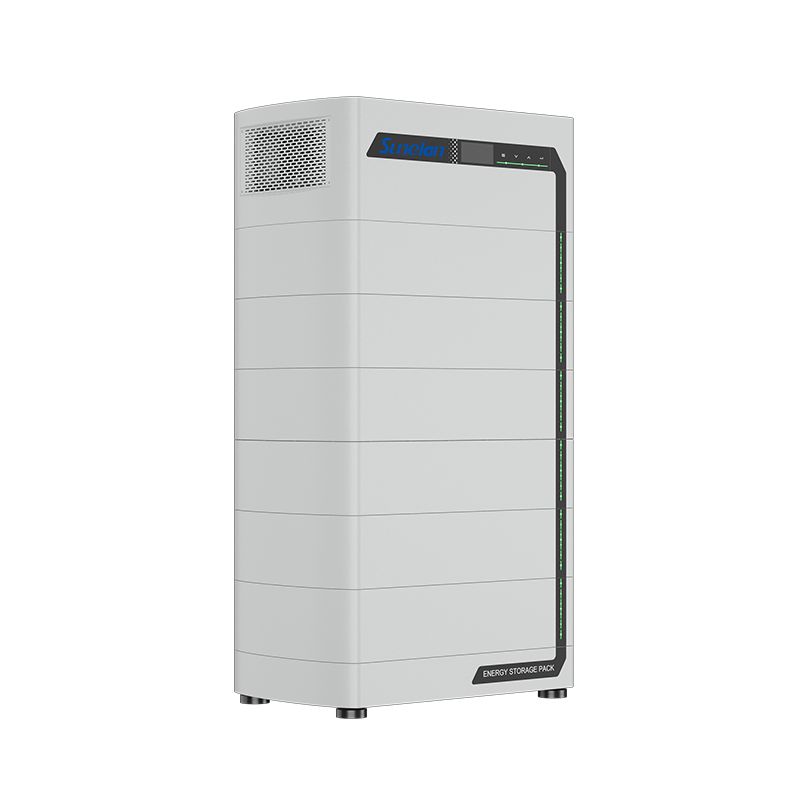

Stacked All-in-one Home Energy Storage System

Stacked All-in-one Home Energy Storage System
Stacked All-in-one Home Energy Storage System
Stacked All-in-one Home Energy Storage System
Stacked All-in-one Home Energy Storage System
Stacked All-in-one Home Energy Storage System

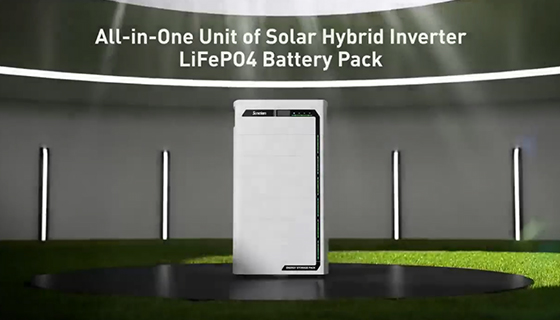

Stacked All-in-one Home Energy Storage System視頻
Play

Stacked All-in-one Home Energy Storage System

Global exclusive patent appearance. High-grade carbon paint process, waterproof, moisture-proof and dust-proof, more unique, practical and beautiful
1.Global exclusive patent appearance. High-grade carbon paint process, waterproof, moisture-proof and dust-proof, more unique, practical and beautiful
True capacity, long life
2.True capacity, long life

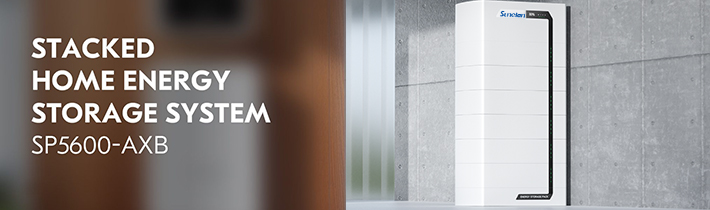

Stacked home energy storage system
3.Stacked home energy storage system
Strong scalability, a single group can choose 10Kwh-30Kwh
4.Strong scalability, a single group can choose 10Kwh-30Kwh

Product Features

Global exclusive patent appearance. High-grade carbon paint process, aterproof, moisture-proof and dust-proof, more unique, practical and eautiful
1
True capacity, long life. Original A lithium iron phosphate battery, safe and eliable. Real capacity, reject false label, cycle life of more than 6000 times
2
Six security protection. Efficient BMS battery management system with over charge, over discharge, over current, short circuit, temperature, charge current limit protection
3
Stacked machine design, efficient integration, space saving, easy installation and use
4
Strong scalability, a single group can choose 10Kwh-30Kwh
5
With UPS uninterrupted power supply function
6
Intelligent WIFI and GPS functions can remotely diagnose and manage battery data. Supports intelligent monitoring on laptops, computers, and mobile phones
7
Save electricity and ensure energy security, independence and stability
8

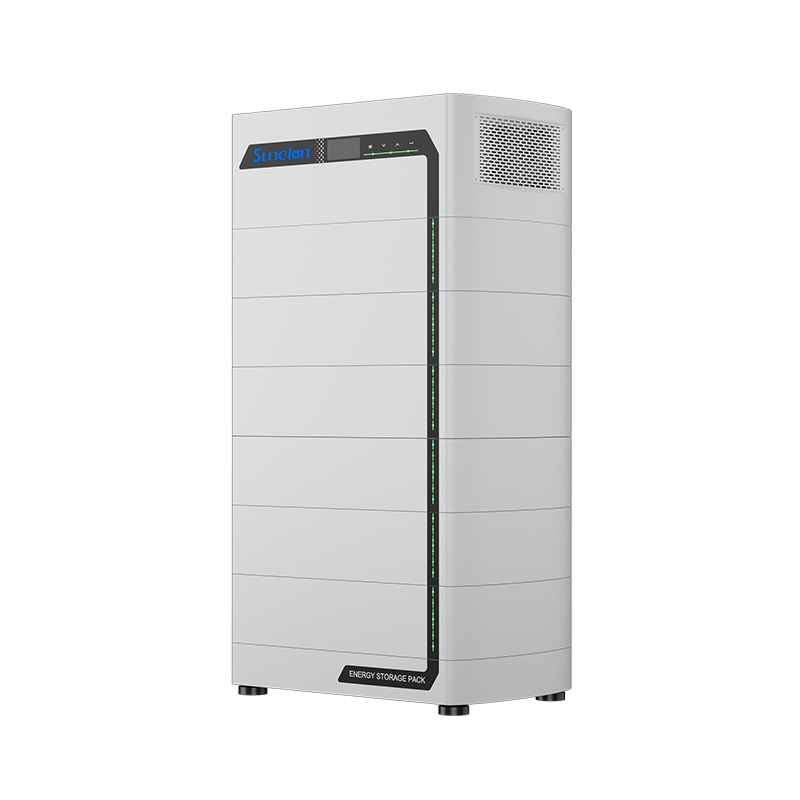

Stacked All-in-one Home Energy Storage System

Technical Specifications

Product Model : AIO10、AIO15、AIO25

AIO10

Battery Type LiFePO4 Level A
Rated Energy 10.44KWh
Rated Voltage 51.2V
Rated Capacity 204Ah
Series and Parallel modes 16S1P
Off-grid Inverter Power 5KW
Number Of Modules 2
Operating voltage range 45.6~56.16V
Charging current 50A
Discharge current 100A
Maximun charge/discharge current 100A/100A
Shell material SPCC
Display LCD
Product dimensions 664*401*633mm
Net product weight 120KG
Life Cycle 6000 times（0.5C 25℃ 80%DOD）
Communication mode RS485/CAN
Protection Grade IP54
Operating temperature （-20℃~60℃）
Certification UN38.3，MSDS，CE

AIO15

Battery Type LiFePO4 Level A
Rated Energy 15.66KWh
Rated Voltage 51.2V
Rated Capacity 306Ah
Series and Parallel modes 16S1P
Off-grid Inverter Power 5KW
Number Of Modules 3
Operating voltage range 45.6~56.16V
Charging current 50A
Discharge current 100A
Maximun charge/discharge current 100A/100A
Shell material SPCC
Display LCD
Product dimensions 664*401*775mm
Net product weight 170KG
Life Cycle 6000 times（0.5C 25℃ 80%DOD）
Communication mode RS485/CAN
Protection Grade IP54
Operating temperature （-20℃~60℃）
Certification UN38.3，MSDS，CE

AIO25

Battery Type LiFePO4 Level A
Rated Energy 26.11KWh
Rated Voltage 51.2V
Rated Capacity 510Ah
Series and Parallel modes 16S1P
Off-grid Inverter Power 10KW
Number Of Modules 5
Operating voltage range 45.6~56.16V
Charging current 50A
Discharge current 100A
Maximun charge/discharge current 100A/100A
Shell material SPCC
Display LCD
Product dimensions 664*401*1059mm
Net product weight 270KG
Life Cycle 6000 times（0.5C 25℃ 80%DOD）
Communication mode RS485/CAN
Protection Grade IP54
Operating temperature （-20℃~60℃）
Certification UN38.3，MSDS，CE
