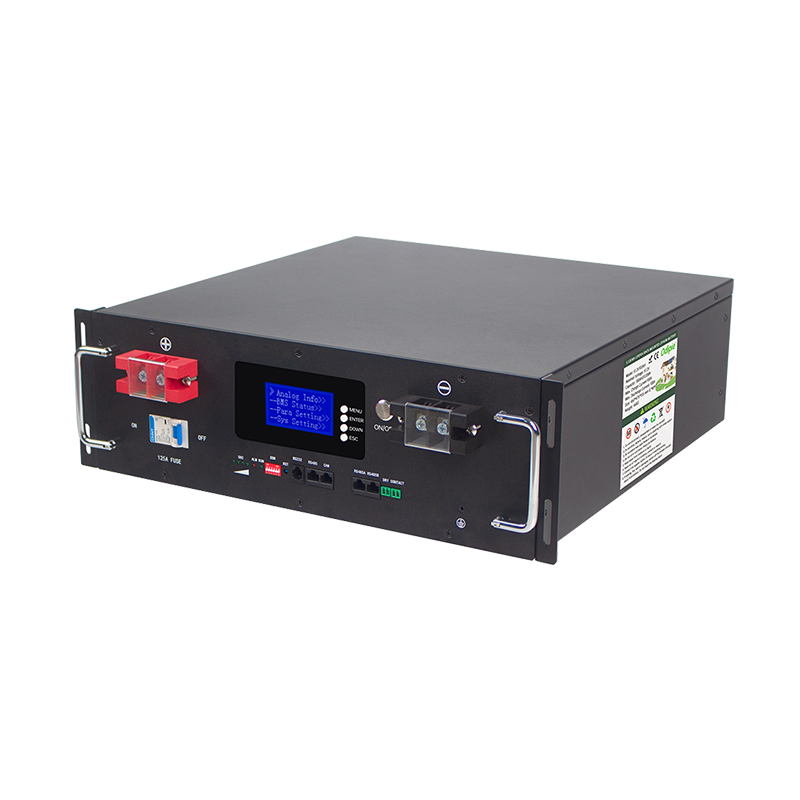

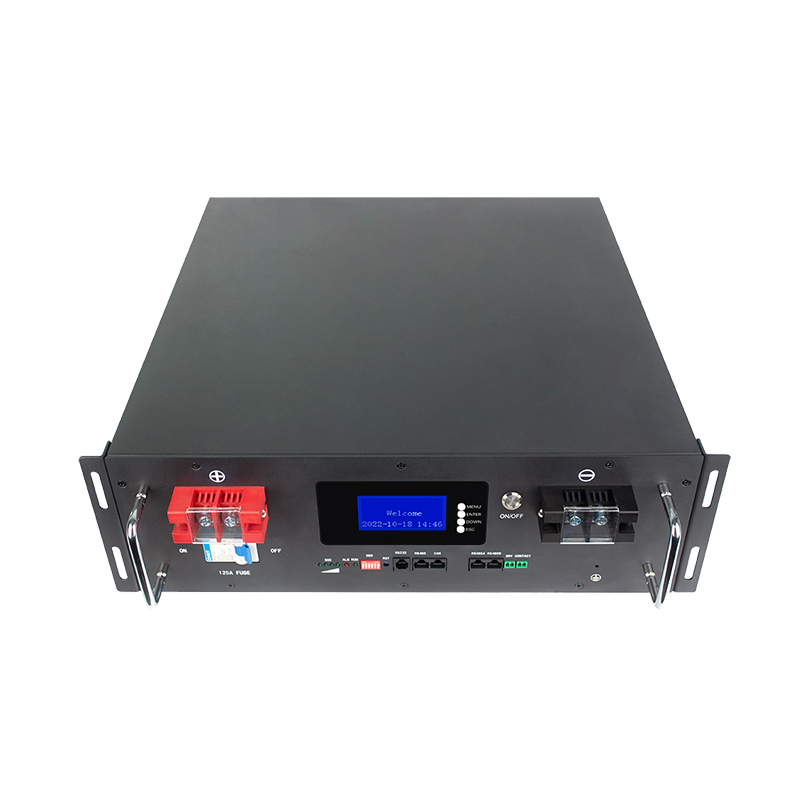

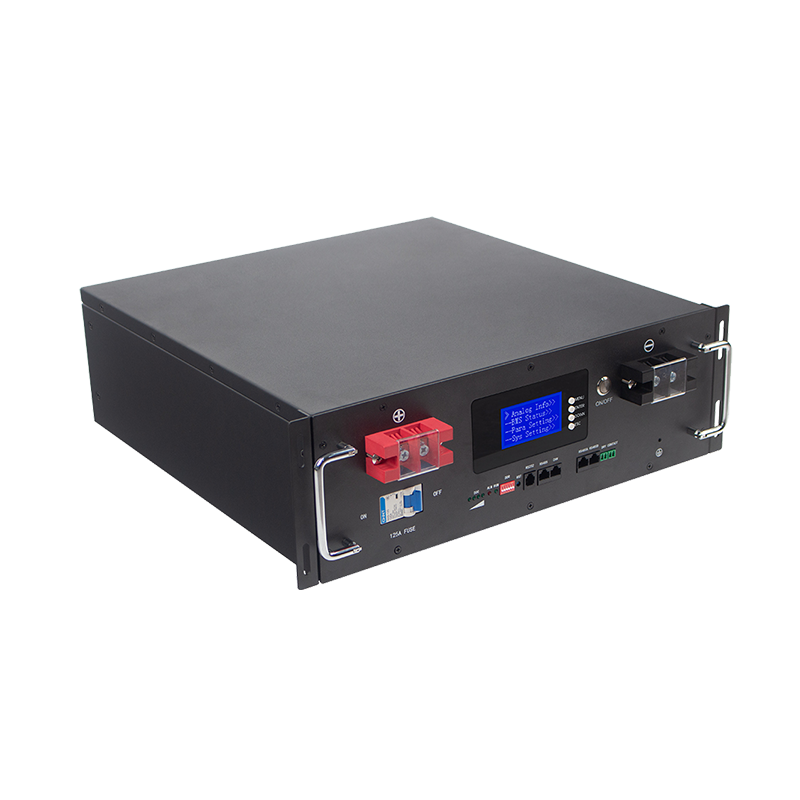

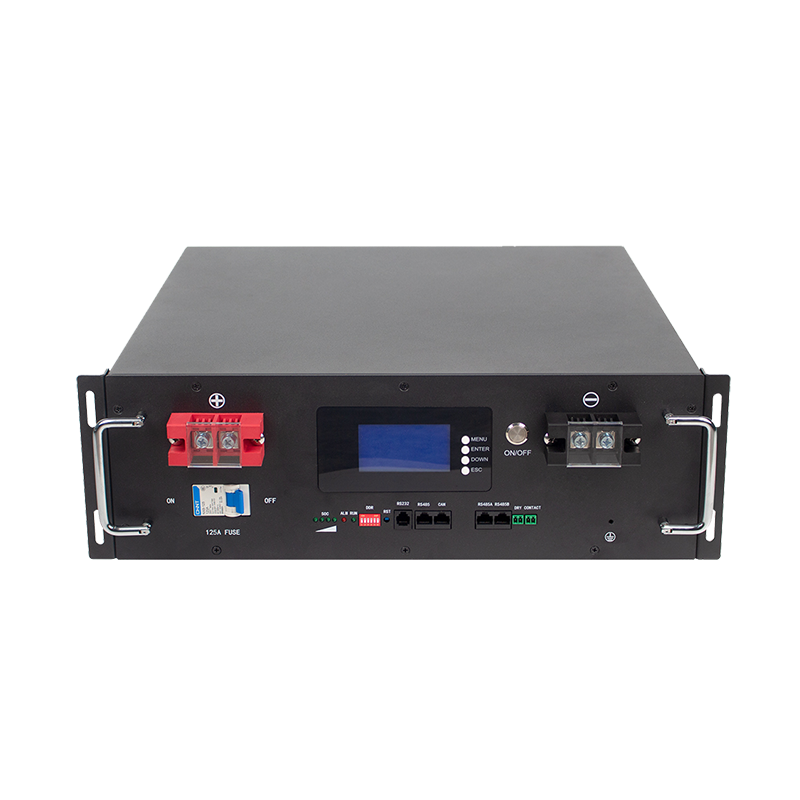

Rack Home Storag System

Product Introduction Product Features Technical Specifications

1.Efficient BMS battery management system

2.With UPS uninterruptible power supply function

3.Parallel expansion is supported

4.Classic, cost-effective

Product Features

Standard appearance design. Standard 3U/4U/5U
chassis with high matching degree.

True capacity, long life. Original A lithium iron
phosphate battery, safe and reliable. Real capacity,
reject false label, cycle life of more than 6000 times.

Efficient BMS battery management system. With
over charge, over discharge, over current, short circuit,
temperature, charging current limit and alarm and
other safety protection functions.

With UPS uninterruptible power supply function.

Parallel expansion is supported. Supports up to 15
parallel groups.

Classic, cost-effective.

Technical Specifications

Product Model : RM5、RM7、RM10

RM5 

Battery Type LiFePO4 Level A

Rated Energy 5.12KWh

Standard Voltage 51.2V

Rated Battery 100Ah

Operating Voltage Range 40-58.4V

Standard charging current 20A

Maximum charging current（A） 50A

Standard discharge current 50A

Maximum discharge current（A） 100A

Shell Material SPCC

Dispaly LCD

Operating temperature （-20℃-60℃）

Product Dimensions 442*133*450mm

Net product weight 47KG

Life Cycle 6000 times（0.5C 25℃ 80%DOD）

communication mode RS485/CAN

Certification UN38.3、MSDS、CE

RM7 

Battery Type LiFePO4 Level A

Rated Energy 7.68KWh

Standard Voltage 51.2V

Rated Battery 150Ah

Operating Voltage Range 40-58.4V

Standard charging current 30A

Maximum charging current（A） 75A

Standard discharge current 75A

Maximum discharge current（A） 150A

Shell Material SPCC

Dispaly LCD

Operating temperature （-20℃-60℃）

Product Dimensions 442*178*550mm

Net product weight 70KG

Life Cycle 6000 times（0.5C 25℃ 80%DOD）

communication mode RS485/CAN

Certification UN38.3、MSDS、CE

RM10 

Battery Type LiFePO4 Level A

Rated Energy 10.24KWh

Standard Voltage 51.2V

Rated Battery 200Ah

Operating Voltage Range 40-58.4V

Standard charging current 40A

Maximum charging current（A） 100A

Standard discharge current 100A

Maximum discharge current（A） 200A

Shell Material SPCC

Dispaly LCD

Operating temperature （-20℃-60℃）

Product Dimensions 442*222*550mm

Net product weight 85KG

Life Cycle 6000 times（0.5C 25℃ 80%DOD）

communication mode RS485/CAN

Certification UN38.3、MSDS、CE
